  • 1/4" COLOR SHARP CCD
  • 380TV Line
  • Power Source : DC12V (±10%)
  • 38×38, 1Board

MODEL

SCM210 (NTSC)
SCM210 (PAL)

Image Device

1/4" COLOR SHARPCCD
1/4" COLOR SHARP CCD

Picture Elements

512(H)×492(V)
512(H)×582(V)

Scanning System

525 Lines, 2:1 Interlace

625 Lines, 2:1 Interlace

Sync System

Internal Synchronization
Internal Synchronization

Horizontal Resolution

380TV Line
360TV Line

Video Output

1Vp-p 75¥Ø
1Vp-p 75¥Ø

S/N Ratio

More Than 48dB (AGC Off)
More Than 48dB (AGC Off)

Gamma Characteristic

0.45
0.45

Gain Control

4dB~30dB Auto

4dB~30dB Auto

White Balance

 Auto 2100¢ªK~8200¢ªK

 Auto 2100¢ªK~8200¢ªK

Electronic Shutter

1/60~1/100,000sec (Auto)
1/50~1/100,000sec (Auto)

LENS

92¢ª 3.6mm

92¢ª 3.6mm

Lens Option

4.3mm, 6mm, 8mm, 12mm

4.3mm, 6mm, 8mm, 12mm

Smear Effect

0.005%

0.005%

Minimum Illumination

0.5Lux (F:1.2)
0.5Lux (F:1.2)

Power Consumption

12V ± 10%DC, 90mA
12V ± 10%DC, 90mA

Operation Temperature

-10¡É~+50¡É, RH95% Max (14¢µ~122¢µ)
-10¡É~+50¡É, RH95% Max (14¢µ~122¢µ)

Storage Temperature

-20¡É~+60¡É, RH95% Max
-20¡É~+60¡É, RH95% Max

Weight

Approx g
Approx g

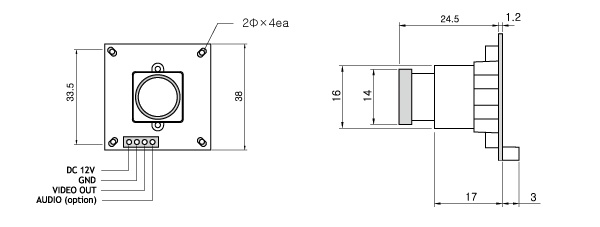

Dimension (mm)

38×38, 1Board
38×38, 1Board

Cable (option)

1.25 Terminal 3P Wire (4P)
1.25 Terminal 3P Wire (4P)
