Products > Color

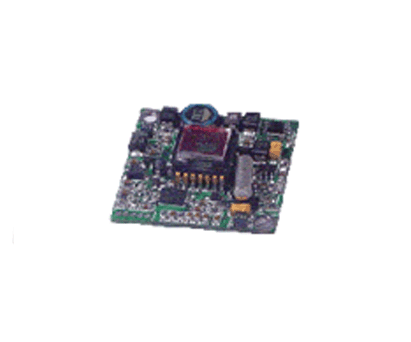

CCD Module > SCM130
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 1/3"
COLOR SONY SUPER HAD CCD
- 380TV
Line
- Power
Source : DC12V
(±10%)
- 28×28,
1Board
|
|
MODEL | SCM130 (NTSC) |
SCM130 (PAL) |
|
Image Device | 1/3" COLOR SONY CCD |
1/3" COLOR SONY CCD |
|
Picture Elements | 510(H)×492(V) |
500(H)×582(V) |
|
Scanning System | 525 Lines, 2:1 Interlace |
|
|
Sync System | Internal Synchronization |
Internal Synchronization |
|
Horizontal Resolution | 380TV Line |
360TV Line |
|
Video Output | 1Vp-p 75¥Ø |
1Vp-p 75¥Ø |
|
S/N Ratio | More Than 50dB (AGC Off) |
More Than 50dB (AGC Off) |
|
Gamma Characteristic | 0.45 |
0.45 |
|
Gain Control
|
4dB~30dB Auto
|
4dB~30dB Auto
|
| White Balance
|
Auto 2,100¢ªK~9,100¢ªK (Push Lock)
|
| Electronic Shutter |
1/60~1/100,000sec (Auto)
|
1/50~1/100,000sec (Auto)
|
|
Smear Effect | 0.005% |
0.005% |
|
Minimum Illumination | 0.2Lux (F:1.2) |
0.2Lux (F:1.2) |
|
Power Consumption | 12V ± 10%DC, 110mA |
12V ± 10%DC, 110mA |
|
Operation Temperature | -10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
-10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
|
Storage Temperature | -20¡É~+60¡É, RH95% Max |
-20¡É~+60¡É, RH95% Max |
|
Weight | Approx g |
Approx g |
|
Dimension (mm) | 28×28, 1Board |
28×28, 1Board |
|
Cable (option) | 1.25 Terminal 3P Wire |
1.25 Terminal 3P Wire |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
