Products > Color

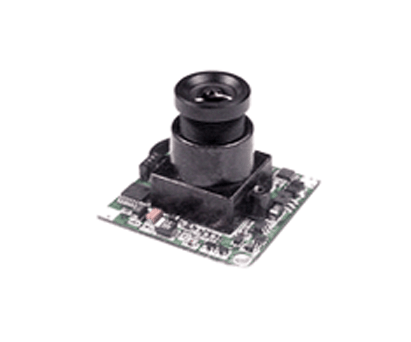

CCD Module > SCM110
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 1/3"
COLOR SONY SUPER
HAD CCD
- 560TV
Line
- Power
Source : DC12V
(±10%)
- 32×32,
1Board
|
|
MODEL | SCM100HQ (NTSC) |
SCM100HQ (PAL) |
|
Image Device | 1/3" COLOR SONY Super HAD CCD |
1/3" COLOR SONY Super HAD CCD |
|
Picture Elements | 768(H)×494(V) |
752(H)×582(V) |
|
Scanning System | 525 Lines, 60Field / Sec |
|
|
Sync System | Internal Synchronization |
Internal Synchronization |
|
Horizontal Resolution | 600TV Line |
540TV Line |
| (B/W Mode : True Day & Night)
|
580TV Line (B/W Mode : True Day & Night)
|
|
Video Output | 1Vp-p 75¥Ø |
1Vp-p 75¥Ø |
|
S/N Ratio | More Than 50dB (AGC Off) |
More Than 50dB (AGC Off) |
|
Gamma Characteristic | 0.45 |
0.45 |
|
Electronic Shutter | 1/60~1/100,000sec (Auto) |
1/50~1/100,000sec (Auto) |
|
LENS | 4.3mm |
4.3mm |
|
Lens Option | 3.6mm, 6mm, 8mm, 12mm |
3.6mm, 6mm, 8mm, 12mm |
|
Smear Effect | 0.005% |
0.005% |
|
Minimum Illumination | 0.2Lux (Day), 0.03Lux (Night) (F:1.2)
|
0.2Lux (Day), 0.03Lux (Night) (F:1.2)
|
|
Power Consumption | 12V ± 10%DC, 110mA |
12V ± 10%DC, 110mA |
|
Operation Temperature | -10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
-10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
|
Storage Temperature | -20¡É~+60¡É, RH95% Max |
-20¡É~+60¡É, RH95% Max |
|
Weight | Approx 40g |
Approx 40g |
|

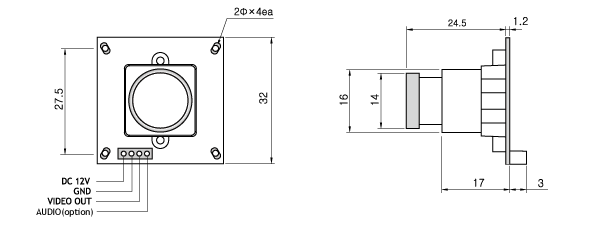

Dimension (mm) | 32×32, 1Board |
32×32, 1Board |
|
Cable (option) | Standard 600mm RCA/DC Jack |
Standard 600mm RCA/DC Jack |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
