CCD Module > SCM100
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
- 1/3" COLOR SONY SUPER HAD CCD
- 380TV Line
- Power Source : DC12V (±10%)
- 32×32, 1Board
|
MODEL | SCM100 (NTSC) |
SCM100 (PAL) |
Image Device | 1/3" COLOR SONY Super HAD CCD |
1/3" COLOR SONY Super HAD CCD |
Picture Elements | 512(H)×492(V) |
500(H)×582(V) |
Scanning System | 525 Lines, 2:1 Interlace |
625 Lines, 2:1 Interlace |
Sync System | Internal Synchronization |
Internal Synchronization |
Horizontal Resolution | 380TV Line |
360TV Line |
Video Output | 1Vp-p 75¥Ø |
1Vp-p 75¥Ø |
S/N Ratio | More Than 50dB (AGC Off) |
More Than 50dB (AGC Off) |
Gain Control | 4dB~30dB (Auto) |
4dB~30dB (Auto) |
Gamma Characteristic | 0.45 |
0.45 |
White Balance | Auto 2100¢ªK ~ 9100¢ªK (Push Lock)
|
Auto 2100¢ªK ~ 9100¢ªK (Push Lock)
|
Electronic Shutter | 1/60~1/100,000sec (Auto) |
1/50~1/100,000sec (Auto) |
LENS | 92¢ª 3.6mm |
92¢ª 3.6mm |
Lens Option | |
|
Smear Effect | 0.005% |
0.005% |
Minimum Illumination | 0.2Lux (F:1.2) |
0.2Lux (F:1.2) |
Power Consumption | 12V ± 10%DC, 110mA |
12V ± 10%DC, 110mA |
Operation Temperature | -10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
-10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
Storage Temperature | -20¡É~+60¡É, RH95% Max |
-20¡É~+60¡É, RH95% Max |
Weight | Approx 26g |
Approx 26g |

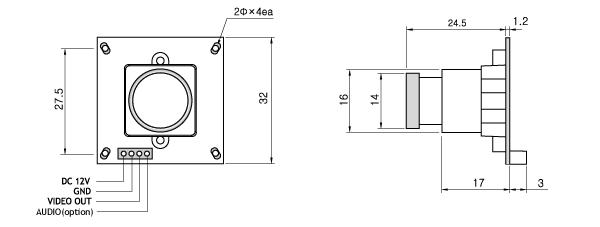

Dimension (mm) | 32×32, 1Board |
32×32, 1Board |
Cable (option) | 1.25 Terminal 3P Wire |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
