Products > Color
CCD Module > SCM110HQ
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 1/3"
COLOR SONY SUPER HAD CCD
- 560TV
Line
- Power
Source : DC12V
(±10%)
- 38×38,
1board
|
|
MODEL | SCM110HQ (NTSC) |
SCM110HQ (PAL) |
|
Image Device | 1/3" COLOR SONY CCD |
1/3" COLOR SONY CCD |
|
Picture Elements | 768(H)×494(V) |
752(H)×582(V) |
|
Scanning System | 525 Lines, 60Field / Sec |
|
|
Sync System | Internal Synchronization |
Internal Synchronization |
|
Horizontal Resolution | 560TV Line |
540TV Line |
| 600TV Line (B/W Mode : Tru Day & Night)
|
580TV Line (B/W Mode : Tru Day & Night)
|
|
Video Output | 1Vp-p 75¥Ø |
1Vp-p 75¥Ø |
|
S/N Ratio | More Than 50dB (AGC Off) |
More Than 50dB (AGC Off) |
|
Gamma Characteristic | 0.45 |
0.45 |
|
Electronic Shutter | 1/60~1/100,000sec (Auto) |
1/50~1/100,000sec (Auto) |
|
LENS | 92¢ª 3.6mm |
92¢ª 3.6mm |
|
Lens Option | |
|
|
DC IRIS 4~9mm,Manual 4~9mm
|
DC IRIS 9~22mm,Manual 4~9mm |
|
Smear Effect | 0.005% |
0.005% |
|
Minimum Illumination | 0.2Lux (Day), 0.03Lux (Night) (F:1.2)
|
0.2Lux (Day), 0.03Lux (Night) (F:1.2)
|
|
Power Consumption | 12V ± 10%DC, 140mA |
12V ± 10%DC, 140mA |
|
Operation Temperature | -10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
-10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
|
Storage Temperature | -20¡É~+60¡É, RH95% Max |
-20¡É~+60¡É, RH95% Max |
|
Weight | Approx 40g |
Approx 40g |
|

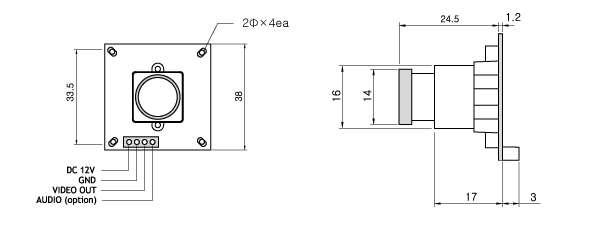

Dimension (mm) | 38×38, 1Board |
38×38, 1Board |
|
Cable (option) | Standard 600mm RCA/DC Jack |
Standard 600mm RCA/DC Jack |
|
|
DC IRIS (DC Driver Auto IRIS Lens Control)
|
|
Option Features
|
IR Sensitive (to work with IR illuminator for Day/Night observation)
|
|
Option Funsion
|
ALC/ESC, BLC, AGC, FL, ATW/PUSH LOCK
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
