MODEL |
SCM510H |
Type |
BOARD
TYPE COLOR CAMERA |
Sensor |
NTSC |
1/3"
SONY COLOR CCD 410K |
PAL |
1/3"
SNY COLOR CCD 410K |
TV
Line |
NTSC |
PAL |
Effective
Pixel |
753(H)
x 582(V) |
Cell
Size |
6.6mm(H)
x 6.3um(V) |
Horizontal
Resolution |
540(H)
TV Line |
Sync.Type |
Internal |
Video
Output |
Composite
1.0Vp-p 75ohm unbalanced |
Scanning
System |
2:1
Interface |
Scanning
System Frequency |
NTSC
:15.735KHz |
|
PAL
: 15.625KHz |
Scanning
Frequency |
NTSC
: 60Hz |
PAL
: 50Hz |
Gamma
Characteristic |
0.45
typ. |
Min.Illumination |
0.2Lux
@F:1.2 |
S/N
Ratio |
More
than 48dB |
Gain
Control |
Automatic |
Electronic
Shutter |
NTSC
: 1/60 ~ 1/1000,000 sec |
PAL
: 1/50 ~ 1/100,000 sec |
Power
Supply |
Regulated
DC 12.0V (9V ~ 15V) |
Power
Consumption |
100mA |
Lens
Mount |
Fixed
Lens Mount |
Operation
Temp |
-10~50¡É |
Preservation
Temp |
-30~80¡É |

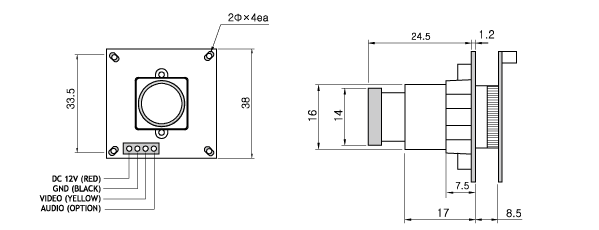

Dimension(mm) |
38(mm)
x 38(mm) |
Weight |
Approx.
26g |
Lens
Options |
Board |
F3.6mm
(Standard), 2.2mm, 2.9mm, 4.3mm, 6mm, 8mm,
12mm |
Pinhole |
Flat
& Cone Pinhole : 2.8mm, 3.7mm, 4.3mm
|
Varifocal |
Manual
Varifocal Lens : 4~9mm, 2.8mm~ 12mm |
|
