Products > Color

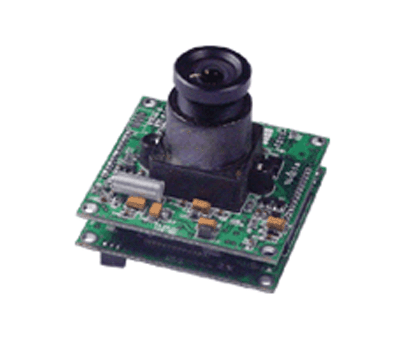

CCD Module > SCM110H
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 1/3"
COLOR SONY SUPER HAD CCD
- 480TV
Line
- Power
Source : DC12V
(±10%)
- 38×38,
2Board
|
|
MODEL | SCM110H (NTSC) |
SCM110H (PAL) |
|
Image Device | 1/3" COLOR SONY CCD |
1/3" COLOR SONY CCD |
|
Picture Elements | 768(H)×494(V) |
752(H)×582(V) |
|
Scanning System | 525 Lines, 2:1 Interlace |
625 Lines, 2:1 Interlace |
|
Sync System | Internal Synchronization |
Internal Synchronization |
|
Horizontal Resolution | 480TV Line |
460TV Line |
|
Video Output | 1Vp-p 75¥Ø |
1Vp-p 75¥Ø |
|
S/N Ratio | More Than 50dB (AGC Off) |
More Than 50dB (AGC Off) |
|
Gain Control | 4dB~30dB (Auto) |
4dB~30dB (Auto) |
|
Gamma Characteristic | 0.45 |
0.45 |
|
White Balance | Auto 2100¢ªK~9100¢ªK (Push Lock)
|
Auto 2100¢ªK~9100¢ªK (Push Lock)
|
|
Electronic Shutter | 1/60~1/100,000sec (Auto) |
1/50~1/100,000sec (Auto) |
|
LENS | 92¢ª 3.6mm |
92¢ª 3.6mm |
|
Lens Option | |
|
|
Smear Effect | 0.005% |
0.005% |
|
Minimum Illumination | 0.2Lux (F:1.2) |
|
|
Power Consumption | 12V ± 10%DC, 130mA |
12V ± 10%DC, 130mA |
|
Operation Temperature | -10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
-10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
|
Storage Temperature | -20¡É~+60¡É, RH95% Max |
-20¡É~+60¡É, RH95% Max |
|
Weight | Approx 26g |
Approx 26g |
|
Dimension (mm) | 38×38, 2Board |
38×38, 2Board |
|
Cable (option) | 1.25 Terminal 3P Wire (4P) |
1.25 Terminal 3P Wire (4P)
|
|
Option
|
Audio
|
Audio
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
