Products > B/W

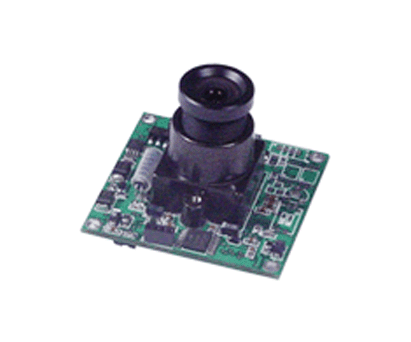

CCD Module > SBM210
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 1/3"
B/W SHARP CCD
- 420TV
Line
- Power
Source : DC12V
(±10%)
- 38×38,
1Board
|
|
MODEL | SBM210 (EIA) |
SBM210 (CCIR) |
|
Image Device | 1/3" B/W A1pros CCD |
1/3" B/W A1pros CCD |
|
Picture Elements | 510(H)×492(V) |
500(H)×582(V) |
|
Scanning System | 525 Lines, 2:1 Interlace |
625 Lines, 2:1 Interlace |
|
Sync System | Internal Synchronization |
Internal Synchronization |
|
Horizontal Resolution | 420TV Line |
420TV Line |
|
Video Output | 1Vp-p 75¥Ø |
1Vp-p 75¥Ø |
|
S/N Ratio | More Than 50dB (AGC Off) |
More Than 50dB (AGC Off) |
|
Gain Control | 4dB~30dB (Auto) |
4dB~30dB (Auto) |
|
Gamma Characteristic | 0.45 |
0.45 |
|
B.L.C
|
Back Light Compensation (Auto)
|
Back Light Compensation (Auto)
|
|
Electronic Shutter | 1/60~1/100,000sec (Auto) |
1/50~1/100,000sec (Auto) |
|
LENS | 92¢ª 3.6mm (option ) |
92¢ª 3.6mm (option ) |
|
Lens Option
|
4.3mm, 6mm, 8mm, 12mm
|
4.3mm, 6mm, 8mm, 12mm
|
|
Smear Effect | 0.005% |
0.005% |
|
Minimum Illumination | 0.2Lux (F:2.0) |
0.2Lux (F:2.0) |
|
Power Consumption | 12V ± 10%DC, 110mA Max |
12V ± 10%DC, 110mA Max |
|
Operation Temperature | -10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
-10¡É~+50¡É, RH95% Max (14¢µ~122¢µ) |
|
Storage Temperature | -30¡É~+60¡É, RH95% Max |
-30¡É~+60¡É, RH95% Max |
|
Weight | Approx 26g |
Approx 26g |
|
Housing
|
ABS Resin
|
ABS Resin
|
|
Iris Comtrol
|
ESC
|
ESC
|
|
Dimension (mm) | 38×38, 1Board |
38×38, 1Board |
|
Cable (option)
|
Standard 500mm RCA / DC Jack
|
Standard 500mm RCA / DC Jack
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
