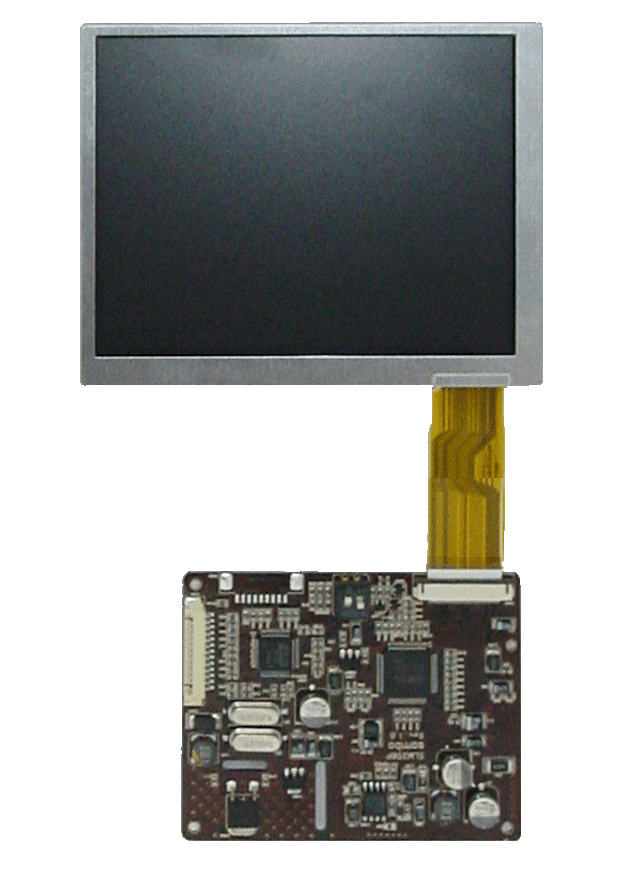

  • 4" COLOR TFT LCD MODULE
    with AU panel
  • Resolution(dot) : 480 X 234
  • NTSC/PAL AUTO

MODEL

SLM400ASD

Display Size

DIAGONAL ANALOG 4"

Dot Pitch

0.171 X 0.264

Number Of Dots

480(H) X 234(V)

Active Area

82.11 X 61.77

SURFACE TREATMENT

RGB VERTICAL DELTA

INPUT SIGNAL

PAL / NTSC (AUTO)

INPUT SIGNAL LEVEL

Composite .1.0Vp-p,75 Ohm

Viewing Angle

TOP:10DEG
BOTTOM:30DEG
LEFT&LIGHT:45DEG

Contrast Ratio

TYP,250cd

Operating Temperature

-0~60'C

Storage Temperature

-25~80'C

Input Voltage

DC12V ( 6.5V - 32V ). 150mA MAX

Backlight Type

LED

Outline Dimension

95.35(H) X 77.0(V) X 3.5(D)
