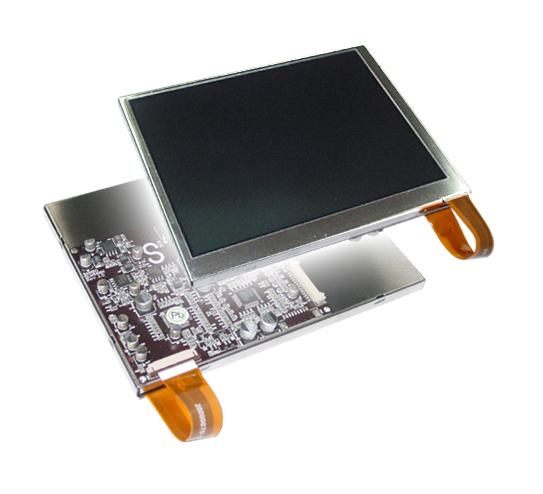

  • 5.6" COLOR TFT LCD MODULE
    with INNOLUX
  • Resolution(dot) : 960×234
  • NTSC/PAL AUTO

MODEL

SLM560NSD

Display Size

Diagonal 5.6" inch

Dot Pitch

0.118(W)×0.362(H)

Dot Format

960×234

Active Area

113.28(W)×84.708(H)

Pixels Arrangement

RGB Stripe Configuration

Display Method

TN / TRANSMISSIVE / NORMALLY WHITE

Input Signal

PAL / NTSC (AUTO)

Input Signal Level

1.0Vp-p, 75 Ohm

Viewing Angle

TOP : 45 deg
BOTTOM : 65 deg
LEFT & LIGHT : 65 deg

Brightness

Typ, 200(CD)

Operating Temperature

-20~70'C

Storage Temperature

-30¡É~85¡É

Input Voltage

DC 12V(6.5V~32V), 200mA MAX

Backlight Type

LED

Dimension

126.50(W)×100.00(H)×5.70(D)
